WD-2UD Plug In Digital Panel Voltmeter 120mm Single Phase High Voltage

China Wei Dian Union(Hubei) Technology Co.,Ltd. certification
China Wei Dian Union(Hubei) Technology Co.,Ltd. certification
I'm Online Chat Now

WD-2UD Plug In Digital Panel Voltmeter 120mm Single Phase High Voltage

WD-2UD Plug In Digital Panel Voltmeter 120mm Single Phase High Voltage
WD-2UD Plug In Digital Panel Voltmeter 120mm Single Phase High Voltage WD-2UD Plug In Digital Panel Voltmeter 120mm Single Phase High Voltage

Large Image :  WD-2UD Plug In Digital Panel Voltmeter 120mm Single Phase High Voltage

Product Details:

Place of Origin: China Main Land
Brand Name: WDLYCH
Certification: ISO9001:2000/ CE
Model Number: WD-2UD

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiate
Packaging Details: Standard export carton/Pallets
Delivery Time: 10 days after down payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 30,000pcs/month
Detailed Product Description
Product Name: Digital Voltmeter Measurement: DC Voltage
Digital Type: Digital Only Measuring Range: 0-9999
Dimension: 120*120mm Standard: IEC62053-21
Warranty: 18 Months
High Light:

digital ac voltmeter

,

panel mount voltmeter

WD-2UD Plug In Digital Panel Voltmeter 120mm Single Phase High Voltage





1. Summary of Product:



WD-2UD series power meter can be used for monitoring and controlling in DC systems. These meters can measure a wide range of parameters such as voltage, current, power and energy. It supports bi-directional current measurement, digital inputs for switch monitoring and relay outputs for remote controlling as well as an over-range alarming feature for voltage and current. Large signals, such as voltage and current can be converted to smaller signal using analog output. All data in the meter is accessible via RS485 using open Modbus RTU protocol. The large 3 line LED display also provides easy to read real-time data directly on the meter front.





2. Product Function:



The WD-2UD Series is a line of DC power meters that measures the voltage, current, power and energy parameters. They are used for monitoring and controlling energy flow in DC systems.



Readings are displayed on the brilliant 3 line black backlight LED display. All AcuDC models offer integration with external systems using MODBUS RTU protocol and an on-board RS485 serial communication port.



Optional analog, digital, relay and alarm output is available via field-swappable plug-in communications modules.The line has been field-tested for accuracy, versatility, durability.



■ DC Energy Management Systems


■ Power Distribution for Telecommunication Room

■ Solar Photovoltaic Systems

■ Wind Power Generation

■ DC Excitation System


■ Industrial DC Control Systems

■ Metallurgy and Electroanalysis Industries

■ EV Charging Monitoring

■ Data Center

■ Cellular Tower Energy Monitoring





3. Ordering Code:



Model No Panel Size(mm)
WD-2UD 120*120-93
WD-9UD 96*96-93
WD-3UD 80*80-93
WD-AUD 72*72-93
WD-BUD 96*48-93
WD-DUD 48*48-81



Note: RS485 / Relay & Analog output are options;





4.Product Description:



Model Number  WD-2UD
Measured Voltage DC Voltage Signal
Accuracy 0.5% (Default)
Protection Level  Front case IP64
Overload  Continous: 1.2 times/ Instant: 10s
Auxiliary Power Supply  AC / DC 80-270V
Operating Temperature -25-55





5. Installation and storage:

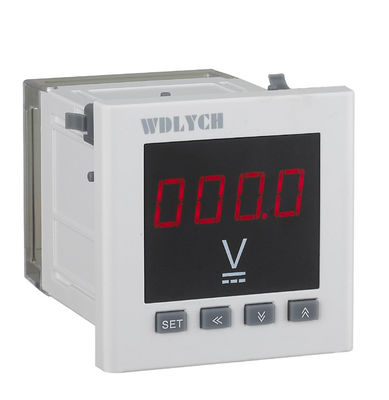

 WD-2UD Plug In Digital Panel Voltmeter 120mm Single Phase High Voltage 0



 Notice: Never install the meter with power!
