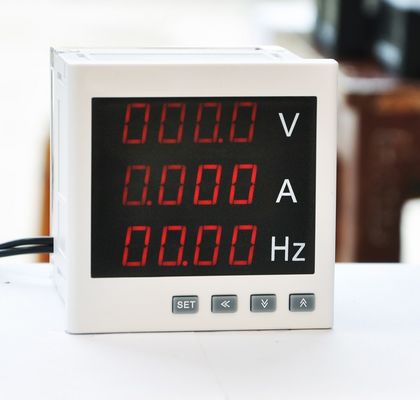

Ac220v Multifunction Energy Meter , 120*120mm Multifunction Power Meter Adjustable Transformation Ratio

Ac220v Multifunction Energy Meter , 120*120mm Multifunction Power Meter Adjustable Transformation Ratio
Ac220v Multifunction Energy Meter , 120*120mm Multifunction Power Meter Adjustable Transformation Ratio

Large Image :  Ac220v Multifunction Energy Meter , 120*120mm Multifunction Power Meter Adjustable Transformation Ratio

Product Details:

Place of Origin: Wuhan, Hubei, China
Brand Name: WDLYCH
Certification: ISO9001, CE
Model Number: WD-2IU3

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotiable
Packaging Details: Inner color box with export carton
Delivery Time: 7 days after payment
Payment Terms: Western Union, L/C, T/T
Supply Ability: 30,000pcs/month
Detailed Product Description
Product Name: Digital Current/ Voltage Meter Model Number: WD-2IUF
Place Of Origin: Hubei, China Mainland Display Type: Digital Only
Measuring Range: 0-9999 Color: White
Dimension: 120*120mm Voltage: AC220V Or AC/DC85-265V
Accuracy Class: 0.2 Communcation: As Option
Alarm: As Option Warranty: 18 Months
High Light:

multifunction energy meter

,

multifunction panel meter


Ac220v Multifunction Energy Meter , 120*120mm Multifunction Power Meter Adjustable Transformation Ratio

1. Product Description:


Series of WD-2IUF Single-phase Power Meters are used for measuring and monitoring the power distribution system. This series of meter can measure the voltage, current, active power, reactive power, apparent power, power factor, frequency, active energy, reactive energy and some other power parameters.

It combines the measurement, the analysis and the operation together, makes the information become clearer, and the operation become easier.




2. Technical Parameters:


Technical IndexValue
Input

Nominal valueVoltage AC:100V,220V,380V; Current AC: 1A/5A
OverloadContinuous: 1.2 time/1s; Instant: 10 time/1s
Frequency45-65Hz
Consumption<0.5VA
Accuracy0.2%
Function

DisplayLED or LCD
CommunicationRS485,Modbus-RTU protocol
AlarmOne channel passive relay; Contact capacity: 3A/30VDC,3A/250VAC, high, low, unbalance alarm etc.
Analog

DC4-20mA, DC0-20mA(Load<500Ω), DC0-5V(Load >1kΩ)
Input: 2-4 channel dry contacts, power inside, optocoupler insolation
Output: 2 switch output,normal open contact of relay
Contact capacity: 3A/30VDC,3A/250VDC
Power Supply

Voltage RangeAC/DC85-270V
Power consumption<5VA
Insulation resistance≥100MΩ
Power Frequency
Withstand Voltage
2kv/1min
Environment

TemperatureOpertation: -25-55℃, Storage: -20℃-75℃
Humidity≤93RH, no condensation, without corrosive
Attitude≤2500m



3. Ordering Code:


Model NameBasic DataModel NoDimension(mm)Cut-out (mm)
Three-Phase
Current & Voltage Meter
  • LED Display
  • Input: Single Voltage & Current
  • Transformation ratio: adjustable
  • Measurement: Single Phase active power data
WD-2IU3-□120*120111*111
WD-9IU3-□96*9692*92
WD-3IU3-□80*8076*76
WD-AIU3-□72*7268*68
WD-DIUE-□48*4845*45





4. Options:


Ac220v Multifunction Energy Meter , 120*120mm Multifunction Power Meter Adjustable Transformation Ratio 0



5. FAQ:


Q: Are you trading company or manufacturer ?
A: We are factory and trading company at same time. We have all kinds of resources in the electrical industry. All the
products you need can be supply with lowest price.
Q: How long is your delivery time?
A: Generally it is 7 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Sample is available but customers have to pay.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance.
Q: How to send a inquiry for more information ?
A: You can find our contact information on the front page of the shop.
