| Product Name: | Power Factor Meter | Model Number: | WD-BH |
|---|---|---|---|
| Place Of Origin: | Hubei, China Mainland | Display Type: | Digital Only |
| Measuring Range: | 0-9999 | Dimension: | 96*48mm |
| Voltage: | AC220V Or AC/DC85-265V | Accuracy Class: | 0.5% |
| Communication: | Optional | Certification: | CE/ISO9001 |
| Warranty: | 18 Months | ||
| High Light: | power factor measurement meter,digital power meter |
||

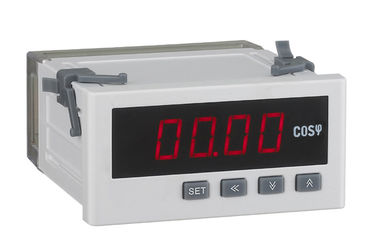

96*48mm Digital Power Factor Meter Active Power Display Local Data Query Function
1. Products Introduction:
Our WD-BH series power factor meter are electric unit measuring instruments, which are able to measure power factor in transmission & distribution power system, widely used in power transforming, distribution automation, intelligent building and power monitoring.
2. Technical Specifications:
| Technical Index | Value | |
| Input |
Nominal value | Voltage AC:100V,220V,380V; Current AC: 1A/5A |
| Overload | Continuous: 1.2 time/1s; Instant: 10 time/1s | |
| Frequency | 45-65Hz | |
| Consumption | <0.5VA | |
| Accuracy | 0.2% | |
| Function |
Display | LED or LCD |
| Communication | RS485,Modbus-RTU protocol | |
| Alarm | One channel passive relay; Contact capacity: 3A/30VDC,3A/250VAC, high, low, unbalance alarm etc. | |
| Analog |
DC4-20mA, DC0-20mA(Load<500Ω), DC0-5V(Load >1kΩ) | |
| Input: 2-4 channel dry contacts, power inside, optocoupler insolation | ||
| Output: 2 switch output,normal open contact of relay | ||
| Contact capacity: 3A/30VDC,3A/250VDC | ||
| Power Supply |
Voltage Range | AC/DC85-270V |
| Power consumption | <5VA | |
| Insulation resistance | ≥100MΩ | |
| Power Frequency Withstand Voltage |
2kv/1min | |
| Environment |
Temperature | Opertation: -25-55℃, Storage: -20℃-75℃ |
| Humidity | ≤93RH, no condensation, without corrosive | |
| Attitude | ≤2500m | |
1). High-precision measurement of single-phase pressure value.
2). The current transformation ratio programmable settings
3).Support for RS-485, Modbus-RTU Protocol
4).Support the switch quantity input. digital output, analog output quantity transducer
5).Auxiliary power supply: ACDC 80V-270V,AC220V,AC380V,AC100V,DC48V,DC24V
1).The top manufacture in China - more than 100 Agents in local market and more than 100 foreign clients make OEM,ODM order from us,some of them are famous brand;
2).We are the ture factory, which guarantee the source of material;
3).Enthusiastic team: Including sales team and technical team, all work hard to service customers around the world;
4).Guarantee: 18 months, all broken parts could be changed free of charge;
5).Service line: 7*24 hours, always ready to answer your questions.
