Home ProductsAnalog Power Factor Meter

96*96mm Power Factor Clamp Meter Non Combustile Abs Plastics High Safety

China Wei Dian Union(Hubei) Technology Co.,Ltd. certification
China Wei Dian Union(Hubei) Technology Co.,Ltd. certification
I'm Online Chat Now

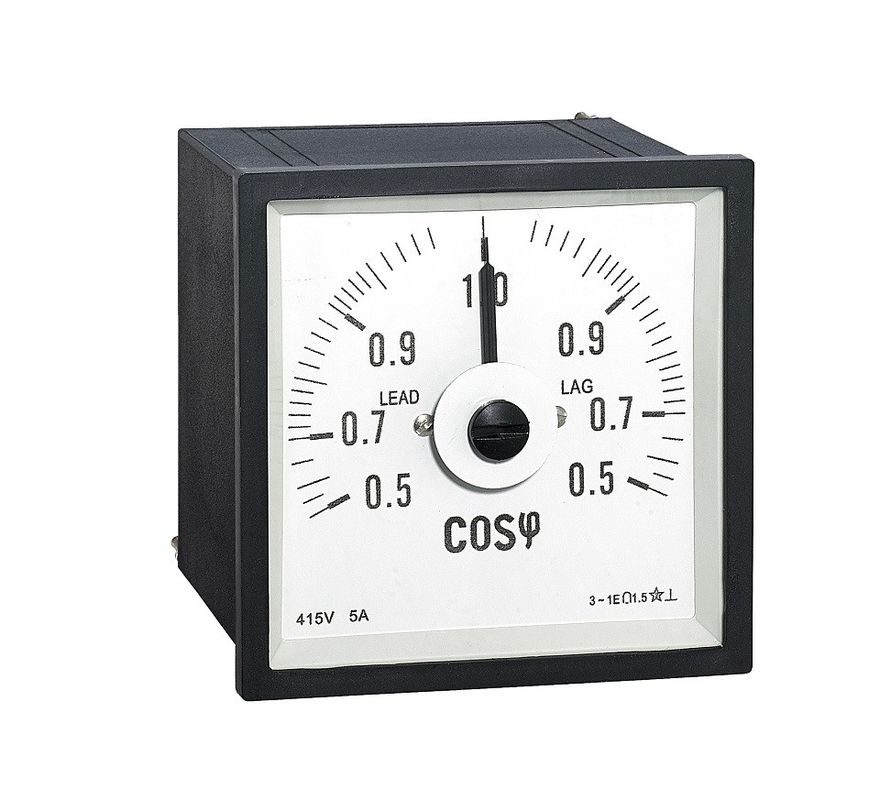

96*96mm Power Factor Clamp Meter Non Combustile Abs Plastics High Safety

96*96mm  Power Factor Clamp Meter Non Combustile Abs Plastics High Safety
96*96mm  Power Factor Clamp Meter Non Combustile Abs Plastics High Safety

Large Image :  96*96mm Power Factor Clamp Meter Non Combustile Abs Plastics High Safety

Product Details:

Place of Origin: Wuhan, Hubei, China
Brand Name: WDLYCH
Certification: ISO9001, CE, CCS
Model Number: WDG96-COSΦ

Payment & Shipping Terms:

Minimum Order Quantity: 5Pcs
Price: Negotiable
Packaging Details: Inner color box with outer export carton
Delivery Time: 7 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 3,000PCS/Month
Detailed Product Description
Product Name: Analog Power Factor Meter Model Number: WDG96-COSΦ
Application: Marine Type Measurement: Power Factor
Material: ABS Plastic Shell Housing Color: Black+White
Display: Analog Only Structure: Moving Coil
Dimension: 96*96mm Standard: IEC60092-50
Certificate: CE/CCS Warranty: 18 Months
High Light:

power factor indicator

,

power factor panel meter



96*96mm Power Factor Clamp Meter Non Combustile Abs Plastics High Safety


1.  Product Description:



  • WD series meter are direct acting indicating analogue electrical measuring instruments. Measuring DC/AC current, voltage, frequency, power, power factor, phase sequence, synchroscope, position indication, network insulation moniroting, hours fun meter and other non-electric measurement;
  • Mainly used in various AC/DC transmission and distribution system, power control panel and electric equipment for various industries such as marine,rail, aviation, chemical and explosive-proof,nuclear power, hig/mid voltage equipment, power generator set and control engineering. It is high end meter, and suitable for complicated environment to measure electric/non-electric energy;
  • Also used on low voltage equipment, construction/mechanical equipment, various AC/DC power distribution system, electrical control panel and equipment. It is mid/low end meter, and suitable for universal environmental to measure electric/non-electrical energy.



2.  Technical Parameters:





Item Technical Data Standards
Technical Standard GB/T7676-1998 IEC60092-50
Environmental Standard GB8355-1987 IEC92-504-74
Safety Standard  GB4793-20 IEC61010
Working Temperature -40-65℃
Temperature Infulence  -13-33℃, 100% comply with accuracy class
Indicating Angle 240°-270º (Synchroscope meter: 360º)
Color of Shell  Black/white,board frame, terminal plate: black
Color of Dial Plate Black/white(other colors are available)
Mounting  Vertical Installation
Dimension  110*110mm, 80*80mm
96*96mm, 72*72mm, 48*48mm
Overshoot Less than 20% when scale reaches to 2/3
Insulation Withstand Circuit& shell: AC2600V/1 min(Water area)
Vibration Resistance 24.5m/s2
Impact Resistance 147m/s2
Material  Shell/terminal board: ABS; Cover: Transparent Glass





3.  3P3W Wiring Diagram:


  96*96mm  Power Factor Clamp Meter Non Combustile Abs Plastics High Safety 0


4. Order Instructions:



96*96mm  Power Factor Clamp Meter Non Combustile Abs Plastics High Safety 1

5. Standards:



  • WD series analog meter are manufactured according to GB/T7676-1998 and IEC60051. And also meet the safety standard GB4793 and IEC61010;
  • DIN43082 dimensions and penel cutouts conforme to GB/T1242 and IEC61554;
  • Digital meters comply with the National Standard GB/T22264-2008;



6.  FAQ:



  • Who is Wei Dian Union?

Wei Dian Union is a new company, eastablished in the year of 2015, we have 15 technical engineer and 10 sales man,

including domestic and international sales. Our team is young, which guarantee us more vitality.

  • Is your company manufacturer or trading company?

Yes, we are the manufacturer, we buy house and develop moudles all by ourselves.

  • What is the warranty of your products? and how about your quality?

All of our meters have 18 months warranty, and we cooperate with the university to develop new items and quality

control, besides our own technical team.

  • How about your payment term and shipment?

We accept T/T, L/C and western union, prefer to TT, delivery date should be within one week after payment.

  • What’s your advantage? Why should I choose your company?

Price: Compared with other famous company, our cost is much lower;

Quality: We have strict quality control, each meters have to accept life-time testing & inspection. Sales supports: We are not big company, so our policy is flexible, quick action to any requirements.
