Power Control Analog Panel Ammeter , 90 Degree Analog Ac Ammeter With 4-20ma Output

China Wei Dian Union(Hubei) Technology Co.,Ltd. certification
China Wei Dian Union(Hubei) Technology Co.,Ltd. certification
I'm Online Chat Now

Power Control Analog Panel Ammeter , 90 Degree Analog Ac Ammeter With 4-20ma Output

Power Control Analog Panel Ammeter , 90 Degree Analog Ac Ammeter With 4-20ma Output
Power Control Analog Panel Ammeter , 90 Degree Analog Ac Ammeter With 4-20ma Output Power Control Analog Panel Ammeter , 90 Degree Analog Ac Ammeter With 4-20ma Output

Large Image :  Power Control Analog Panel Ammeter , 90 Degree Analog Ac Ammeter With 4-20ma Output

Product Details:

Place of Origin: Wuhan, Hubei, China
Brand Name: WDLYCH
Certification: ISO9001, CE, CCS
Model Number: WDZ96-ACA

Payment & Shipping Terms:

Minimum Order Quantity: 10Pcs
Price: Negotiable
Packaging Details: Inner color box with outer export carton
Delivery Time: 7 Working Days after advanced payment
Payment Terms: T/T, Western Union
Supply Ability: 10,000PCSC/Month
Detailed Product Description
Product Name: Analog Ammeter Model Number: WDZ96-ACA
Application: Marine Type Measurement: AC Current
Material: ABS Plastic Shell Housing Color: Black+White
Standard: IEC60092-50 Certificate: CCS,CE, ISO9001
Warranty: One Year
High Light:

analog amp meter

,

analog current panel meter



Power Control Analog Panel Ammeter , 90 Degree Analog Ac Ammeter With 4-20ma Output





1. Products Description:


  • Summary & Application:



This type of meters are analog electric measuring instruments, widely used for measuring AC/DC current, voltage, frequency, power,

power factor, insulation resistance and synchronous indicating in AC/DC transmitting & distributing power system, switchboard, other electric & non-electric instruments.

  •    Technical Parameters:



Model Number WDZ96-ACA
Usage Marine application
Measuring Range 0-100A, By CT
Accuracy Class 1%
Power Supply  24VDC, 110VAC,220VAC,380VAC
Transducing Output 4-20mA

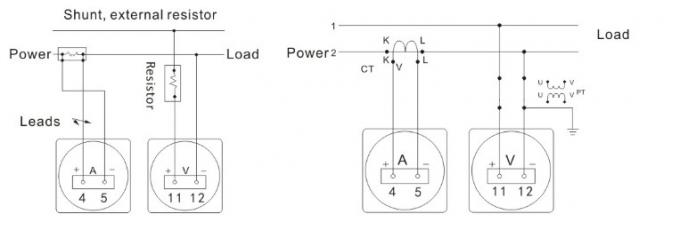

  •   Wiring Diagram

 Power Control Analog Panel Ammeter , 90 Degree Analog Ac Ammeter With 4-20ma Output 0



2.  Application:





  • WD series meter are direct acting indicating analogue electrical measuring instruments. Measuring DC/AC current, voltage, frequency, power, power factor, phase sequence, synchroscope, position indication, network insulation moniroting, hours fun meter and other non-electric measurement;
  • Mainly used in various AC/DC transmission and distribution system, power control panel and electric equipment for various industries such as marine,rail, aviation, chemical and explosive-proof,nuclear power, hig/mid voltage equipment, power generator set and control engineering. It is high end meter, and suitable for complicated environment to measure electric/non-electric energy;
  • Also used on low voltage equipment, construction/mechanical equipment, various AC/DC power distribution system, electrical control panel and equipment. It is mid/low end meter, and suitable for universal environmental to measure electric/non-electrical energy.

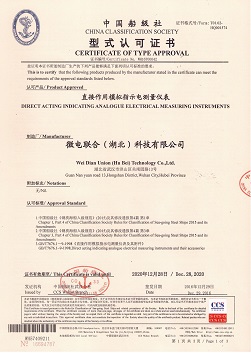

3.  Certificate:



Power Control Analog Panel Ammeter , 90 Degree Analog Ac Ammeter With 4-20ma Output 1   Power Control Analog Panel Ammeter , 90 Degree Analog Ac Ammeter With 4-20ma Output 2
