Product Details:
Payment & Shipping Terms:
|
| Product Name: | Digital Tachometer | Model Number: | WD-9S |
|---|---|---|---|
| Place Of Origin: | Hubei, China Mainland | Display Type: | Digital Only |
| Measuring Range: | 0-9999 | Color: | Grey |
| Dimension: | 72*72mm | Voltage: | AC220V Or AC/DC85-270V |
| Accuracy Class: | 0.5 | Phase: | Single Phase |
| Communication: | As Option | Alarm: | As Option |
| Certificate: | ISO9001/CE | Warranty: | 18 Months |
| High Light: | digital tachometer gauge,digital rpm tachometer |
||

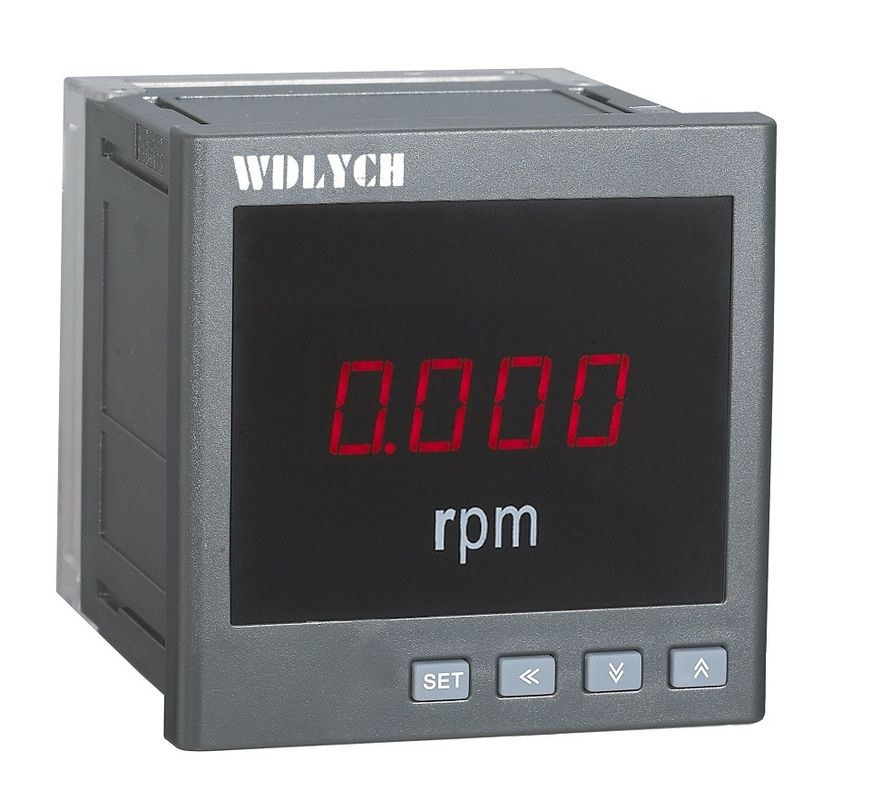

Smart Led Display Digital Contact Tachometer Cleaer Window Screen Local Data Query
1. Quick Overview:
WD-AS Single-phase rpm meters are used for measuring and monitoring the power distribution system. This series of meter can measure rmp in power distribution or other applications.
It combines the measurement, the analysis and the operation together, makes the information become clearer, and the operation become easier.
2. Technical Parameters:
| Technical Index | Value | |
| Input |
Nominal value | Voltage AC:100V,220V,380V; Current AC: 1A/5A |
| Overload | Continuous: 1.2 time/1s; Instant: 10 time/1s | |
| Frequency | 45-65Hz | |
| Consumption | <0.5VA | |
| Accuracy | 0.2% | |
| Function |
Display | LED or LCD |
| Communication | RS485,Modbus-RTU protocol | |
| Alarm | One channel passive relay; Contact capacity: 3A/30VDC,3A/250VAC, high, low, unbalance alarm etc. | |
| Analog |
DC4-20mA, DC0-20mA(Load<500Ω), DC0-5V(Load >1kΩ) | |
| Input: 2-4 channel dry contacts, power inside, optocoupler insolation | ||
| Output: 2 switch output,normal open contact of relay | ||
| Contact capacity: 3A/30VDC,3A/250VDC | ||
| Power Supply |
Voltage Range | AC/DC85-270V |
| Power consumption | <5VA | |
| Insulation resistance | ≥100MΩ | |
| Power Frequency Withstand Voltage |
2kv/1min | |
| Environment |
Temperature | Opertation: -25-55℃, Storage: -20℃-75℃ |
| Humidity | ≤93RH, no condensation, without corrosive | |
| Attitude | ≤2500m | |
3. Main Features:
4. Ordering Code:
| Model Name | Basic Data | Model No | Dimension(mm) | Cut-out (mm) |
| Single-Phase Digital Tachometer |
|
WD-9S-□ | 120*120 | 111*111 |
| WD-3S-□ | 96*96 | 92*92 | ||
| WD-AS-□ | 80*80 | 76*76 | ||
| WD-BS-□ | 72*72 | 68*68 | ||
| WD-DS-□ | 48*48 | 45*45 |
5. Wiring Diagram:
6. F & Q:
Wei Dian Union is a new company, eastablished in the year of 2015, we have 15 technical engineer and 10 sales man, including domestic and international sales. Our team is young, which guarantee us more vitality.
Yes, we are the manufacturer, we buy house and develop moudles all by ourselves.
All of our meters have 18 months warranty, and we cooperate with the university to develop new items and quality control, besides our own technical team.
We accept T/T, L/C and western union, prefer to TT, delivery date should be within one week after payment.
Price: Compared with other famous company, our cost is much lower;
Quality: We have strict quality control, each meters have to accept life-time testing & inspection.
Sales supports: We are not big company, so our policy is flexible, quick action to any requirements.
