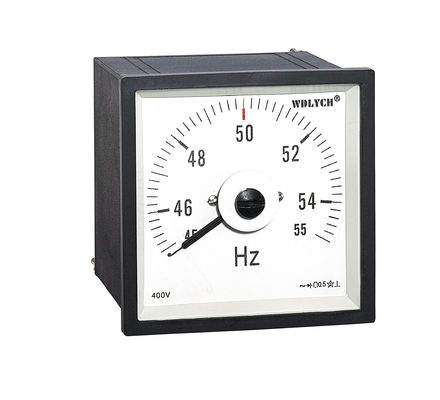

Square Analog Frequency Meter , High Accuracy Analog Current Meter Wdg96-Hz

Square Analog Frequency Meter , High Accuracy  Analog Current Meter Wdg96-Hz
Square Analog Frequency Meter , High Accuracy  Analog Current Meter Wdg96-Hz

Large Image :  Square Analog Frequency Meter , High Accuracy Analog Current Meter Wdg96-Hz

Product Details:

Place of Origin: China Mainland
Brand Name: WDLYCH
Certification: ISO9001, CE, CCS
Model Number: WDG96-Hz

Payment & Shipping Terms:

Minimum Order Quantity: 10Pcs
Price: Negotiable
Packaging Details: Inner color box with outer export carton
Delivery Time: 7 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 10000PCSC/Month
Detailed Product Description
Product Name: Analog Voltmeter Model Number: WDG96-Hz
Application: Marine Using Measurement: Frequency
Material: ABS Plastic Shell Housing Color: Black+White
Display: Analog Only Structure: Moving Coil
Standard: IEC60092-50 Warranty: 18 Months
Certificate: CE/CCS
High Light:

frequency panel meter

,

radio frequency meter

Square Analog Frequency Meter , High Accuracy Analog Current Meter Wdg96-Hz





1. Products Description:


  • Summary & Application:



This type of meters are analog electric measuring instruments, widely used for measuring AC/DC current, voltage, frequency, power,

power factor, insulation resistance and synchronous indicating in AC/DC transmitting & distributing power system, switchboard, other electric & non-electric instruments.

  •    Technical Parameters:



Model Number WDG96-Hz
Usage Marine application
Measuring Range 45-55Hz, 55-65Hz, 45-65Hz, 350-450Hz
Accuracy Class 1%
Power Supply  100V, 200V,380V,400V, 440V;380/100V,400/100V, 440/110V,690/100V
Transducing Output 4-20mA



  •   Wiring Diagram

  Square Analog Frequency Meter , High Accuracy  Analog Current Meter Wdg96-Hz 0

2.  Ordering Code:







Square Analog Frequency Meter , High Accuracy  Analog Current Meter Wdg96-Hz 1

3.  Technical Standards:

  • WD series analog meter are manufactured according to GB/T7676-1998 and IEC60051. And also meet the safety standard GB4793 and IEC61010;
  • DIN43082 dimensions and penel cutouts conforme to GB/T1242 and IEC61554;
  • Digital meters comply with the National Standard GB/T22264-2008;





 4.  FAQ



  • Who is Wei Dian Union?

Wei Dian Union is a new company, eastablished in the year of 2015, we have 15 technical engineer and 10 sales man,

including domestic and international sales. Our team is young, which guarantee us more vitality.

  • Is your company manufacturer or trading company?

Yes, we are the manufacturer, we buy house and develop moudles all by ourselves.

  • What is the warranty of your products? and how about your quality?

All of our meters have 18 months warranty, and we cooperate with the university to develop new items and quality

control, besides our own technical team.

  • How about your payment term and shipment?

We accept T/T, L/C and western union, prefer to TT, delivery date should be within one week after payment.

  • What’s your advantage? Why should I choose your company?

Price: Compared with other famous company, our cost is much lower;

Quality: We have strict quality control, each meters have to accept life-time testing & inspection. Sales supports: We are not big company, so our policy is flexible, quick action to any requirements.
