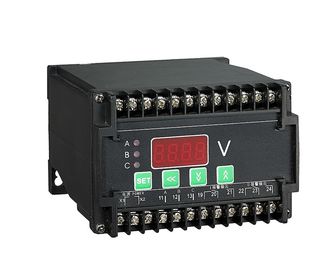

Din Rail Voltage Motor Protection Relay , Plug In Overload Protection Relay Parameters Visible

China Wei Dian Union(Hubei) Technology Co.,Ltd. certification
China Wei Dian Union(Hubei) Technology Co.,Ltd. certification
I'm Online Chat Now

Din Rail Voltage Motor Protection Relay , Plug In Overload Protection Relay Parameters Visible

Din Rail Voltage Motor Protection Relay , Plug In Overload Protection Relay Parameters Visible
Din Rail Voltage Motor Protection Relay , Plug In Overload Protection Relay Parameters Visible

Large Image :  Din Rail Voltage Motor Protection Relay , Plug In Overload Protection Relay Parameters Visible

Product Details:

Place of Origin: China Mainland
Brand Name: WDLYCH
Certification: CE, CCS, ISO9001
Model Number: WD-REV

Payment & Shipping Terms:

Minimum Order Quantity: 5PCS
Price: Negotiable
Packaging Details: Inner color box with outer export carton
Delivery Time: 7 Working Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10,000PCS/Month
Detailed Product Description
Product Name: Current Relay Model Number: WD-REV
Application: Marine Generator Place Of Origin: Hubei, China Mainland
Color: Black Shipping Term: FOB Shanghai
Working Temperature: 0-55℃ Dimension: 110*75*120mm
Certificate: CCS,CE,ISO9001:2000 Warranty: 18 Months
High Light:

motor overload relay

,

overload protection relay

Din Rail Voltage Motor Protection Relay , Plug In Overload Protection Relay Parameters Visible



1. Products Description:



  • WD series meter are direct acting indicating analogue electrical measuring instruments. Measuring DC/AC current, voltage, frequency, power, power factor, phase sequence, synchroscope, position indication, network insulation moniroting, hours fun meter and other non-electric measurement;
  • Mainly used in various AC/DC transmission and distribution system, power control panel and electric equipment for various industries such as marine,rail, aviation, chemical and explosive-proof,nuclear power, hig/mid voltage equipment, power generator set and control engineering. It is high end meter, and suitable for complicated environment to measure electric/non-electric energy;
  • Also used on low voltage equipment, construction/mechanical equipment, various AC/DC power distribution system, electrical control panel and equipment. It is mid/low end meter, and suitable for universal environmental to measure electric/non-electrical energy.

2. Using Instruction:


 1). Used for protecting and controlling in generator system;

 2).  Power consumption: ≤3VA;

 3).  This relay is convent to use and install. Users should connect the wire at first in accordance with corresponding wiring scheme and provide auxiliary power supply for the relay moudle in line with the specification. Each realy is equipped with the function of time delay;

4). Parameters visible, users are able to set alarm value according to demands.



3. Technical Functions:




Item Technical Data Standards
Technical Standard GB/T7676-1998 IEC60092-50
Environmental Standard GB8355-1987 IEC92-504-74
Safety Standard GB4793-20 IEC61010
Working Temperature -40-65℃
Temperature Infulence -13-33℃, 100% comply with accuracy class
Indicating Angle 240°-270º (Synchroscope meter: 360º)
Color of Shell Black/white,board frame, terminal plate: black
Color of Dial Plate Black/white(other colors are available)
Mounting Vertical Installation
Dimension 110*110mm, 80*80mm
96*96mm, 72*72mm, 48*48mm
Overshoot Less than 20% when scale reaches to 2/3
Insulation Withstand Circuit& shell: AC2600V/1 min(Water area)
Vibration Resistance 24.5m/s2
Impact Resistance 147m/s2
Material Shell/terminal board: ABS; Cover: Transparent Glass




4. Typical Wiring Diagram

Din Rail Voltage Motor Protection Relay , Plug In Overload Protection Relay Parameters Visible 0


5. Technical Standards:



  • WD series analog meter are manufactured according to GB/T7676-1998 and IEC60051. And also meet the safety standard GB4793 and IEC61010;
  • DIN43082 dimensions and penel cutouts conforme to GB/T1242 and IEC61554;
  • Digital meters comply with the National Standard GB/T22264-2008;
