|Product Name:||Synchroscope Meter||Model:||WD96-AS|
|Dimension:||96*96mm||Indicating Angle:||360 Degee|
|Color:||Black + White||Structure:||Moving Coil|
moving coil panel meter,
digital synchro meter

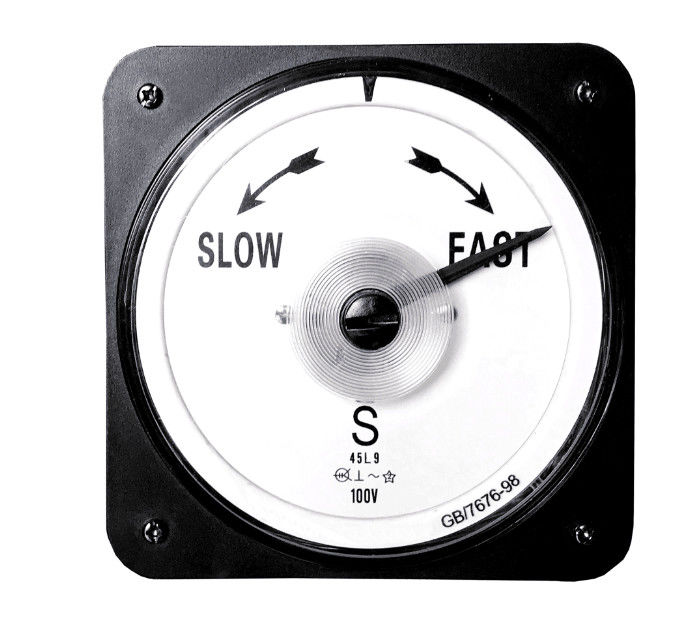

96 * 96mm Synchroscope Meter , Three Phase Phase Sequence Meter Pt Connection
In two single-phase or three-phase network system, indicating the status when power generator and network are synchronized. Rotation of indication of indication disc will slow down until the pointer stop at(Inverted triangle) sign. Both system can be synchronized and connect the generator to the power network. Maxinum working time: 15 minutes.
Pls specify single-phase or three-phase while ordering.
1). Power Supply: AC400V or AC100V, 50/60Hz;
2). Speed adjusting can work under absolute frequency less than 3Hz;
3). Pulse width of speed adjusting: 0.1-0.5S, level 0-9, "0" is testing code;
4). Range of frequency difference locking: 0.12-0.5Hz, default set: 0.3Hz;
5). Lead time of close command: 80ms-400ms, default: 200ms;
6). Power consumption: ≤5VA;
7). Output load capacity: AC380V/3A, DC280V/10A;
8). Environment temperature: 0-50℃, humidity: 95%
|Temperature Infulence||-13-33℃, 100% comply with accuracy class|
|Indicating Angle||240°-270º (Synchroscope meter: 360º)|
|Color of Shell||Black/white,board frame, terminal plate: black|
|Color of Dial Plate||Black/white(other colors are available)|
|96*96mm, 72*72mm, 48*48mm|
|Overshoot||Less than 20% when scale reaches to 2/3|
|Insulation Withstand||Circuit& shell: AC2600V/1 min(Water area)|
|Material||Shell/terminal board: ABS; Cover: Transparent Glass
