|Product Name:||Synchroscope Meter||Model:||WDG96-SM|
|Dimension:||96*96mm||Indicating Angle:||360 Degee|
|Color:||Black + White||Structure:||Moving Coil|
analog measuring instruments,
digital synchro meter

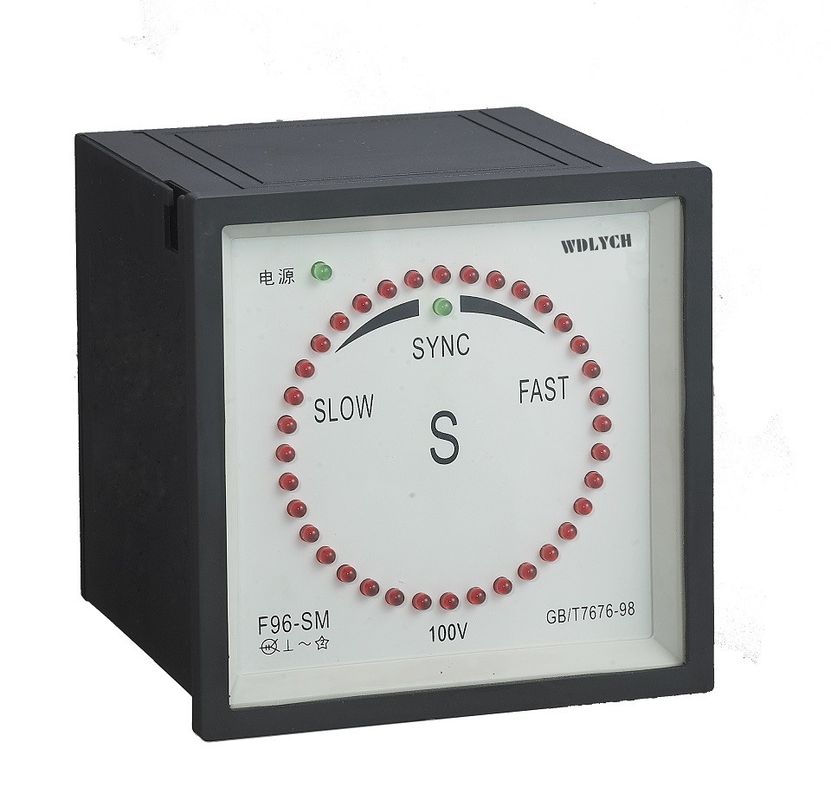

96mm Synchroscope Meter High Vibration Resistance Abs Plastic Cover
Synchroscope display the phase difference and frequency difference between two power system or power system and generator, also give indication when both are synchronized. Consumption: ≤5VA. It can be divided into digital/analog type.
Indicating the status if power generator and network are synchronized. When the voltage and frequency in between power generator and network is consistency, rotation of LED roulette will be slowed down until the SYNC LED is on. Both system can be synchronized and connect the generator to the power network.
|Temperature Infulence||-13-33℃, 100% comply with accuracy class|
|Indicating Angle||240°-270º (Synchroscope meter: 360º)|
|Color of Shell||Black/white,board frame, terminal plate: black|
|Color of Dial Plate||Black/white(other colors are available)|
|96*96mm, 72*72mm, 48*48mm|
|Overshoot||Less than 20% when scale reaches to 2/3|
|Insulation Withstand||Circuit& shell: AC2600V/1 min(Water area)|
|Material||Shell/terminal board: ABS; Cover: Transparent Glass
1). Fluctuation of voltage ±10% rated value, frequency difference between power generator and network less than 2Hz, Sync meter works;
2). Frequency difference closedown range: 0.05-0.5Hz;
3). Lead time of closing demand: 50ms-500ms;
4). Power supply: Network and generato systm: 100V, 50Hz;
5). Power consumption: ≤5VA;
6). Capacity of output contact: AC380/5A or DC280V/10;
7). Environment temperature: 0-55℃, relativity humidity: 95%, with vibration, oil & salt mist during operating.
1). Guarantee of high quality
2). Customized Producing
Because of the source manufacturer, it is able for us to produce the items according to customers' requirements.
