Payment & Shipping Terms:
|Product Name:||Digital Tachometer||Model Number:||WD-9S|
|Place Of Origin:||Hubei, China Mainland||Display Type:||Digital Only|
|Dimension:||72*72mm||Voltage:||AC220V Or AC/DC85-270V|
|Accuracy Class:||0.5||Phase:||Single Phase|
|Communication:||As Option||Alarm:||As Option|
digital rpm tachometer,
digital dial gauge

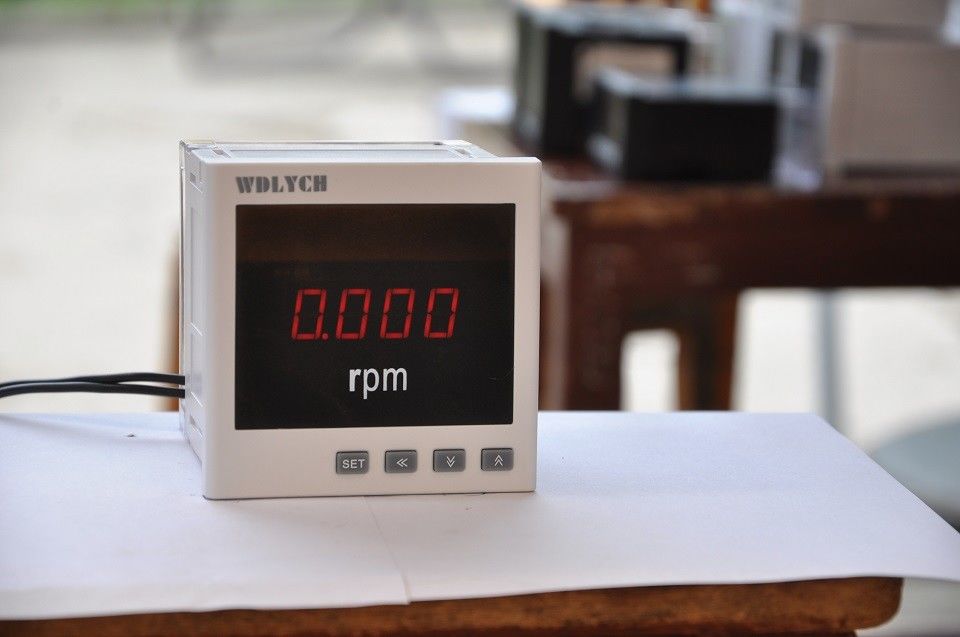

Led Display Digital Measurement Meter , Digital Tachometer Gauge With Signal From Sensor
1. Product Introduction:
WD-BS Single-phase rpm meters are used for measuring and monitoring the power distribution system. This series of meter can measure rmp in power distribution or other applications.
It combines the measurement, the analysis and the operation together, makes the information become clearer, and the operation become easier.
2. Technical Parameters:
||Nominal value||Voltage AC:100V,220V,380V; Current AC: 1A/5A|
|Overload||Continuous: 1.2 time/1s; Instant: 10 time/1s|
||Display||LED or LCD|
|Alarm||One channel passive relay; Contact capacity: 3A/30VDC,3A/250VAC, high, low, unbalance alarm etc.|
||DC4-20mA, DC0-20mA(Load<500Ω), DC0-5V(Load >1kΩ)|
|Input: 2-4 channel dry contacts, power inside, optocoupler insolation|
|Output: 2 switch output,normal open contact of relay|
|Contact capacity: 3A/30VDC,3A/250VDC|
||Temperature||Opertation: -25-55℃, Storage: -20℃-75℃|
|Humidity||≤93RH, no condensation, without corrosive|
3. Selling Points:
1).High precision measurement of Single- phase Rotation Speed in power distribution system and other applications.
2). To provide a nixie tube or liquid crystal display,local data query.
3). Current and voltage gain programmable settings.
4). Support for RS- 485 communication, Modbus-RTU protocol.
5). Support for switching input, output, analog quantity transmitting output.
6). Auxiliary power supply: AC/DC 80V~270V, AC220V.
7). A variety of shapes, to meet the different req-uirements of the cabinet body electric circuit.
4. Ordering Code:
|Model Name||Basic Data||Model No||Dimension(mm)||Cut-out (mm)|
5. Wiring Diagram:
6. Package and Shipment:
7. Know More About us?
Wei Dian Union is a new company, eastablished in the year of 2015, we have 15 technical engineer and 10 sales man, including domestic and international sales. Our team is young, which guarantee us more vitality.
Yes, we are the manufacturer, we buy house and develop moudles all by ourselves.
All of our meters have 18 months warranty, and we cooperate with the university to develop new items and quality control, besides our own technical team.
We accept T/T, L/C and western union, prefer to TT, delivery date should be within one week after payment.
Price: Compared with other famous company, our cost is much lower;
Quality: We have strict quality control, each meters have to accept life-time testing & inspection.
Sales supports: We are not big company, so our policy is flexible, quick action to any requirements.
Contact Person: Mr. He
