Home ProductsDigital Panel Voltmeter

AC Panel Mount Voltmeter Three Phase 0 - 20ma Analog Output 4 Digits LED

Good quality Analog Power Meter for sales
Good quality Analog Power Meter for sales
I'm Online Chat Now

AC Panel Mount Voltmeter Three Phase 0 - 20ma Analog Output 4 Digits LED

China AC Panel Mount Voltmeter Three Phase 0 - 20ma Analog Output 4 Digits LED supplier
AC Panel Mount Voltmeter Three Phase 0 - 20ma Analog Output 4 Digits LED supplier AC Panel Mount Voltmeter Three Phase 0 - 20ma Analog Output 4 Digits LED supplier

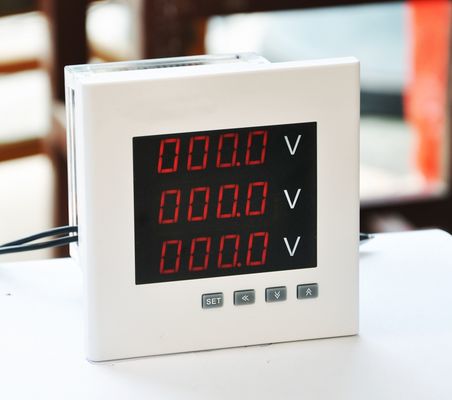

Large Image :  AC Panel Mount Voltmeter Three Phase 0 - 20ma Analog Output 4 Digits LED

Product Details:

Place of Origin: Wuhan, Hubei (China)
Brand Name: WDLYCH
Certification: ISO9001:2000/ CE
Model Number: WD-3U3

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: Standard export carton/Pallets
Delivery Time: 10 days after down payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 300,000pcs/month
Contact Now
Detailed Product Description
Product Name: Digital Voltmeter Measurement: AC Voltage
Display: 4 Digits LED Phase: 3- Phase
Technical Standard: IEC62053-21 Accuracy: 0.5%
Warranty: 18 Months RS485: As Option
Dimensions: 80*80mm



AC Panel Mount Voltmeter Three Phase 0 - 20ma Analog Output 4 Digits LED







1. What is our meter used for?



Measuring and displaying the voltage in electric power network and automation control system.With the characteristic of direct-reading, high accuracy, good stability and anti-vibration.





2. Key Points:



  •  High-precision measurement of three-phase Voltage Measurement.





  •  The current transformation ratio programmable settings



  •  Support for RS-485, Modbus-RTU Protocol



  •  Support the switch quantity input. digital output, analog output quantity transducer



  • Auxiliary power supply: ACDC 80V-270V,AC220V,AC380V,AC100V,DC48V,DC24V



3. Products Description:



  • measurement accuracy: current class 0.5s
  • signal input: connection of three-phase four-wire, three-phase three-wire
  • Rated current: AC 0-500V
  • Overload: 1.2 times (constant), 10 times times 5 seconds (instant)
  • Power consumption: <0.4VA
  • Impedance: <20m euro
  • Frequency: AC 50Hz
  •  auxiliary power: job range ACDC 80V-270V,AC220V
  • Power consumption: <3VA
  • module: communication interface, 1 RS-485, Modbus-RTU Protocol
  • Switch input: supports 4-channel dry contact input
  • Digital output: supports 1-channel relay output, capacity: AC2505A,DC30V5A
  • Transmitting output: supports up to 3 channels of analog output: 4-20mA
  • Storage temperature:-25-55




4. Ordering Code:



Model No Panel Size(mm)
WD-2U3 120*120-93
WD-9U3 96*96-93
WD-3U3 80*80-93
WD-AU3 72*72-93
WD-BU3 96*48-93
WD-DU3 48*48-81



Note: RS485 / Relay & Analog output are options;





5. Installation and storage:



 Notice: Never install the meter with power!



 Hole Size: 76*76mm Vertical installation.



 AC Panel Mount Voltmeter Three Phase 0 - 20ma Analog Output 4 Digits LED



6. Application:



  Digital intelligent meter are electric unit measuring instrument with function of programmable          measurement,display and digital communication, etc. Utilize AC/DC sampling technology, be able to  measure current, voltage, power, power factor, frequency in power transmission & distribution system,
 widely used in power transforming, distribution automation, intelligent building and power monitoring,
 site-inspection & remote monitoring also available.
