Isolation Digital Power Meter , 72*72mm Electronic Energy Meter 2 Programable Alarms

China Wei Dian Union(Hubei) Technology Co.,Ltd. certifications
China Wei Dian Union(Hubei) Technology Co.,Ltd. certifications
I'm Online Chat Now

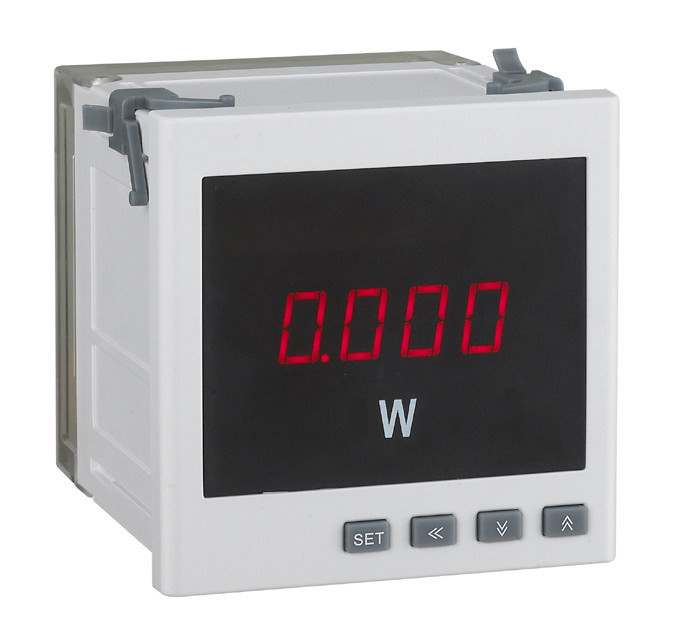

Isolation Digital Power Meter , 72*72mm Electronic Energy Meter 2 Programable Alarms

Isolation Digital Power Meter , 72*72mm Electronic Energy Meter 2 Programable Alarms
Isolation Digital Power Meter , 72*72mm Electronic Energy Meter 2 Programable Alarms

Large Image :  Isolation Digital Power Meter , 72*72mm Electronic Energy Meter 2 Programable Alarms

Product Details:

Place of Origin: Wuhan, Hubei, China
Brand Name: WDLYCH
Certification: ISO9001, CE
Model Number: WD-3P3

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Inner color box with export carton
Delivery Time: 7 days after payment
Payment Terms: Western Union, L/C, T/T
Supply Ability: 20,000pcs/month
Detailed Product Description
Product Name: Digital Power Meter Display Type: Digital Only
Measuring Range: 0-9999 Color: White
Material: Enhanced PC Shell Dimension: 72*72mm
Power Supply: AC85-270V Accuracy Class: 0.2
Certificate: ISO9001/CE Warranty: 18 Months
High Light:

electronic energy meter

,

power energy meter


Isolation Digital Power Meter , 72*72mm Electronic Energy Meter 2 Programable Alarms



1. Goods Description

 Digital intelligent power meter are electric unit measuring instruments, which are able to measure power in transmission & distribution power system, widely used in power transforming, distribution automation, intelligent building and power monitoring.

2. Technical Parameters

Technical IndexValue
Input

Nominal valueVoltage AC:100V,220V,380V; Current AC: 1A/5A
OverloadContinuous: 1.2 time/1s; Instant: 10 time/1s
Frequency 45-65Hz
Consumption<0.5VA
Accuracy0.2%
Function

Display LED or LCD
CommunicationRS485,Modbus-RTU protocol
AlarmOne channel passive relay; Contact capacity: 3A/30VDC,3A/250VAC, high, low, unbalance alarm etc.
Analog

DC4-20mA, DC0-20mA(Load<500Ω), DC0-5V(Load >1kΩ)
Input: 2-4 channel dry contacts, power inside, optocoupler insolation
Output: 2 switch output,normal open contact of relay
Contact capacity: 3A/30VDC,3A/250VDC
Power Supply

Voltage Range AC/DC85-270V
Power consumption <5VA
Insulation resistance ≥100MΩ
Power Frequency
Withstand Voltage
2kv/1min
Environment

TemperatureOpertation: -25-55℃, Storage: -20℃-75℃
Humidity ≤93RH, no condensation, without corrosive
Attitude≤2500m


3. Ordering Code:


Model NameBasic DataModel NoDimension(mm)Cut-out (mm)
Single Phase
Active Power Meter
  • LED Display
  • Input: Single Voltage & Current
  • Transformation ratio: adjustable
  • Measurement: Single Phase active power data
WD-2P1-□120*120111*111
WD-9P1-□96*9692*92
WD-3P1-□80*8076*76
WD-AP1-□72*7268*68
WD-BP1-□96*4892*45
WD-DP148*4845*45




3. Wiring And Connection Diagram

Isolation Digital Power Meter , 72*72mm Electronic Energy Meter 2 Programable Alarms 0

4.  Certificate:

 Isolation Digital Power Meter , 72*72mm Electronic Energy Meter 2 Programable Alarms 1
Isolation Digital Power Meter , 72*72mm Electronic Energy Meter 2 Programable Alarms 2
5. Why Choose us?


a. The guarante of high quality:


  • Cerification of ISO9001 & CE
  • Strict quality controller throughout the whole production process
  • The source of materials
  • Color printing and overall check
  • Semi-finished products inspection and overall check
  • Finished products inspection and overall check
  • Reliable packing and shipment

b. Customized Producing

  •  Be able to make the products according to customers' demands & drawing

c. Reliable team :

  • Excellent technical team,  waiting for your slove your problems.
  • Sales team: Always pay attention to your requirements and lead time
  • Professional recommmends to you
  • Any inquiry will be replied within 24 hours
