72*72mm Digital Multifunction Meter Liquid Crystal Display Local Data Query

China Wei Dian Union(Hubei) Technology Co.,Ltd. certifications
China Wei Dian Union(Hubei) Technology Co.,Ltd. certifications
I'm Online Chat Now

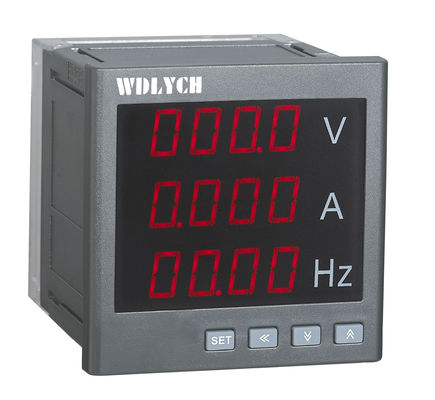

72*72mm Digital Multifunction Meter Liquid Crystal Display Local Data Query

72*72mm Digital Multifunction Meter  Liquid Crystal Display Local Data Query
72*72mm Digital Multifunction Meter  Liquid Crystal Display Local Data Query

Large Image :  72*72mm Digital Multifunction Meter Liquid Crystal Display Local Data Query

Product Details:

Place of Origin: Wuhan, Hubei, China
Brand Name: WDLYCH
Certification: ISO9001, CE
Model Number: WD-AIUF

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotiable
Packaging Details: Inner color box with export carton
Delivery Time: 7 days after payment
Payment Terms: Western Union, L/C, T/T
Supply Ability: 20,000pcs/month
Detailed Product Description
Product Name: Digital Current/ Voltage Meter Model Number: WD-AIUF
Place Of Origin: Hubei, China Mainland Display Type: Digital Only
Measuring Range: 0-9999 Color: Grey
Dimension: 72*72mm Voltage: AC220V Or AC/DC85-265V
Accuracy Class: 0.5 Communcation: As Option
Alarm: As Option Certificate: 18 Months
Warranty: 18 Months
High Light:

digital multi meter

,

multifunction panel meter

72*72mm Digital Multi - Function Meter Liquid Crystal Display Local Data Query






 1. Description:


Series of WD-AIUF Single-phase Power Meters are used for measuring and monitoring the power distribution system. This series of meter can measure the voltage, current, active power, reactive power, apparent power, power factor, frequency, active energy, reactive energy and some other power parameters.

It combines the measurement, the analysis and the operation together, makes the information become clearer, and the operation become easier.




2. Technical Parameters:


Technical Index Value
Input

Nominal value Voltage AC:100V,220V,380V; Current AC: 1A/5A
Overload Continuous: 1.2 time/1s; Instant: 10 time/1s
Frequency 45-65Hz
Consumption <0.5VA
Accuracy 0.2%
Function

Display LED or LCD
Communication RS485,Modbus-RTU protocol
Alarm One channel passive relay; Contact capacity: 3A/30VDC,3A/250VAC, high, low, unbalance alarm etc.
Analog

DC4-20mA, DC0-20mA(Load<500Ω), DC0-5V(Load >1kΩ)
Input: 2-4 channel dry contacts, power inside, optocoupler insolation
Output: 2 switch output,normal open contact of relay
Contact capacity: 3A/30VDC,3A/250VDC
Power Supply

Voltage Range AC/DC85-270V
Power consumption <5VA
Insulation resistance ≥100MΩ
Power Frequency
Withstand Voltage
2kv/1min
Environment

Temperature Opertation: -25-55℃, Storage: -20℃-75℃
Humidity ≤93RH, no condensation, without corrosive
Attitude ≤2500m



3. Main Features:





1).High precision measurement of three- phase voltage, three - phase current, active power, reactive power, apparent power, power factor, frequency of electric parameters .



2). To provide a nixie tube or liquid crystal display,local data query.



3). Current and voltage gain programmable settings.



4). Support for RS- 485 communication, Modbus-RTU protocol.



5). Support for switching input, output, analog quantity transmitting output.



6). Auxiliary power supply: AC/DC 80V~270V, AC220V.



7). A variety of shapes, to meet the different req-uirements of the cabinet body electric circuit.









4. Ordering Code:




Model Name Basic Data Model No Dimension(mm) Cut-out (mm)
Three-Phase
Current & Voltage Meter
  • LED Display
  • Input: Single Voltage & Current
  • Transformation ratio: adjustable
  • Measurement: Single Phase active power data
WD-2IUF-□ 120*120 111*111
WD-9IUF-□ 96*96 92*92
WD-3IUF-□ 80*80 76*76
WD-AIUF-□ 72*72 68*68
WD-DIUF-□ 48*48 45*45





5. Wiring and Ternimal Diagram:


72*72mm Digital Multifunction Meter  Liquid Crystal Display Local Data Query 0





6. Installation Process:



72*72mm Digital Multifunction Meter  Liquid Crystal Display Local Data Query 1





7. Brief of Our Company:


Wei Dian Union(Hubei) Technology Co.,Ltd. Located in Optics Valley of China--- Wuhan East lake high-tech development Zone, established in 2008, with factory area of 50002 and 120 employees, We are the member of National Standardization Committee for Electric Meters & Instruments.



Wei Dian Union are specialized in manufacturing electric measuring instrument and current transformer with a concentration in R&D, Production, sales & after sales, which guarantee us strictly comply with standard of GB/T22264-2008 & GB/T7676-98 to operate. Now , we have ISO9001-2008 certificate, digital meter have passed CE, while marine meter approved by China Classification Society (CCS).



Our products are widely used in transmission & distribution power system of shipping, aviation, railway, oil, chemistry, metallurgy, electric, power station, intelligent building, industrial instrument, etc.



With the principle of “Pursuing for precision and perfection, unifying thinking and behavior ”, continuous exploration and innovation to meet customers’ demands. Reliable quality and good after-service receive more and more trust from users.
