Single Phase Current Digital Panel Meter , Multifunction Panel Meter 80*80mm

China Wei Dian Union(Hubei) Technology Co.,Ltd. certifications
China Wei Dian Union(Hubei) Technology Co.,Ltd. certifications
I'm Online Chat Now

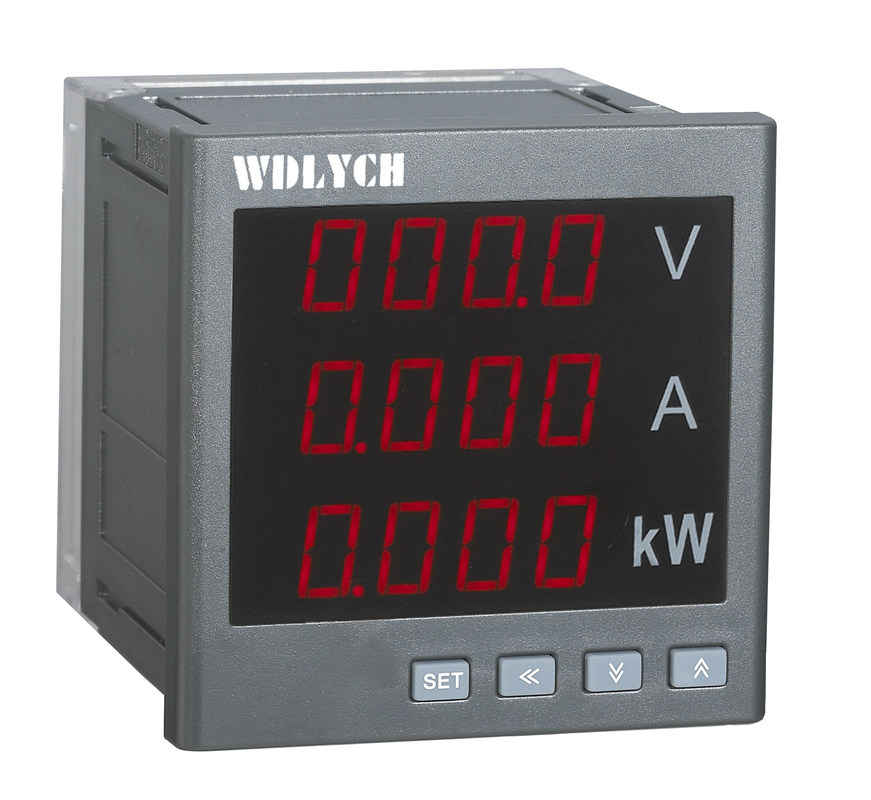

Single Phase Current Digital Panel Meter , Multifunction Panel Meter 80*80mm

Single Phase Current Digital Panel Meter , Multifunction Panel Meter 80*80mm
Single Phase Current Digital Panel Meter , Multifunction Panel Meter 80*80mm

Large Image :  Single Phase Current Digital Panel Meter , Multifunction Panel Meter 80*80mm

Product Details:

Place of Origin: Wuhan, Hubei, China
Brand Name: WDLYCH
Certification: ISO9001, CE
Model Number: WD-3IUP

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotiable
Packaging Details: Inner color box with export carton
Delivery Time: 7 days after payment
Payment Terms: Western Union, L/C, T/T
Supply Ability: 20,000pcs/month
Detailed Product Description
Product Name: Digital Current/ Voltage Meter Model Number: WD-3IUP
Place Of Origin: Hubei, China Mainland Display Type: Digital Only
Measuring Range: 0-9999 Color: Grey
Dimension: 80*80mm Voltage: AC220V Or AC/DC85-265V
Accuracy Class: 0.5 Communcation: As Option
Alarm: As Option Certificate: CE/ISO9001
Warranty: 18 Months
High Light:

digital multi meter

,

multifunction energy meter


Single Phase Current Digital Panel Meter , Multifunction Panel Meter 80*80mm




1. Product Description:

Our WD series digital intelligent meter are electric unit measuring instruments, which are able to measure power factor in transmission & distribution power system, widely used in power transforming, distribution automation, intelligent building and power monitoring.




2. Technical Index:




Technical Index Value
Input

Nominal value Voltage AC:100V,220V,380V; Current AC: 1A/5A
Overload Continuous: 1.2 time/1s; Instant: 10 time/1s
Frequency 45-65Hz
Consumption <0.5VA
Accuracy 0.2%
Function

Display LED or LCD
Communication RS485,Modbus-RTU protocol
Alarm One channel passive relay; Contact capacity: 3A/30VDC,3A/250VAC, high, low, unbalance alarm etc.
Analog

DC4-20mA, DC0-20mA(Load<500Ω), DC0-5V(Load >1kΩ)
Input: 2-4 channel dry contacts, power inside, optocoupler insolation
Output: 2 switch output,normal open contact of relay
Contact capacity: 3A/30VDC,3A/250VDC
Power Supply

Voltage Range AC/DC85-270V
Power consumption <5VA
Insulation resistance ≥100MΩ
Power Frequency
Withstand Voltage
2kv/1min
Environment

Temperature Opertation: -25-55℃, Storage: -20℃-75℃
Humidity ≤93RH, no condensation, without corrosive
Attitude ≤2500m






3. Ordering Instruction:




Model Name Basic Data Model No Dimension(mm) Cut-out (mm)
Three-Phase
Current & Voltage & Power Meter
  • LED Display
  • Input: Single Voltage & Current
  • Transformation ratio: adjustable
  • Measurement: Single Phase Current/ Voltage/Power
WD-2IUP-□ 120*120 111*111
WD-9IUP-□ 96*96 92*92
WD-3IUP-□ 80*80 76*76
WD-AIUP-□ 72*72 68*68
WD-DIUP-□ 48*48 45*45







4. Main Features:



1).High precision measurement of three- phase voltage, three - phase current, active power, reactive power, apparent power, power factor, frequency of electric parameters .



2). To provide a nixie tube or liquid crystal display,local data query.



3). Current and voltage gain programmable settings.



4). Support for RS- 485 communication, Modbus-RTU protocol.



5). Support for switching input, output, analog quantity transmitting output.



6). Auxiliary power supply: AC/DC 80V~270V, AC220V.



7). A variety of shapes, to meet the different req-uirements of the cabinet body electric circuit.







5. Optional Functions:



Single Phase Current Digital Panel Meter , Multifunction Panel Meter 80*80mm 0





6. F & Q:



  •  Who is Wei Dian Union?



Wei Dian Union is a new company, eastablished in the year of 2015, we have 15 technical engineer and 10 sales man, including domestic and international sales. Our team is young, which guarantee us more vitality.



  • Is your company manufacturer or trading company?



Yes, we are the manufacturer, we buy house and develop moudles all by ourselves.



  • What is the warranty of your products? and how about your quality?



All of our meters have 18 months warranty, and we cooperate with the university to develop new items and quality control, besides our own technical team.



  • How about your payment term and shipment?



We accept T/T, L/C and western union, prefer to TT, delivery date should be within one week after payment.



  • What’s your advantage? Why should I choose your company?



    Price: Compared with other famous company, our cost is much lower;

    Quality: We have strict quality control, each meters have to accept life-time testing & inspection.

    Sales supports: We are not big company, so our policy is flexible, quick action to any requirements.
